Download OpenStreetMap
The code below uses the Toolbox SDK, which you can install with pip install toolbox-sdk.
Additional Python examples: using SDK, using Requests. If you prefer other programming language or need full API reference, check out Toolbox OpenAPI as well.
Docs
Download OpenStreetMap features (buildings, roads, landuse, etc.) for a given bounding box via the Overpass API. Returns a ZIP archive with a GeoPackage containing one layer per category and a manifest.
Inputs:
Bounding box in WGS84 (west, south, east, north);
Categories - Comma-separated OSM categories to download. Available: buildings, roads, paths, landuse, natural, waterways, amenities, shops, tourism. Default:
buildings,roads,landuse;Custom tags - JSON string with custom OSM tags, e.g.
{"leisure": "park"};-
Network type. Road network type to download (only used when ‘roads’ category is selected):
Drive
Walk
Bike
All - default
Outputs:
ZIP archive with a GeoPackage containing one layer per category;
Text report with the number of features for each layer;
JSON manifest.
Example:

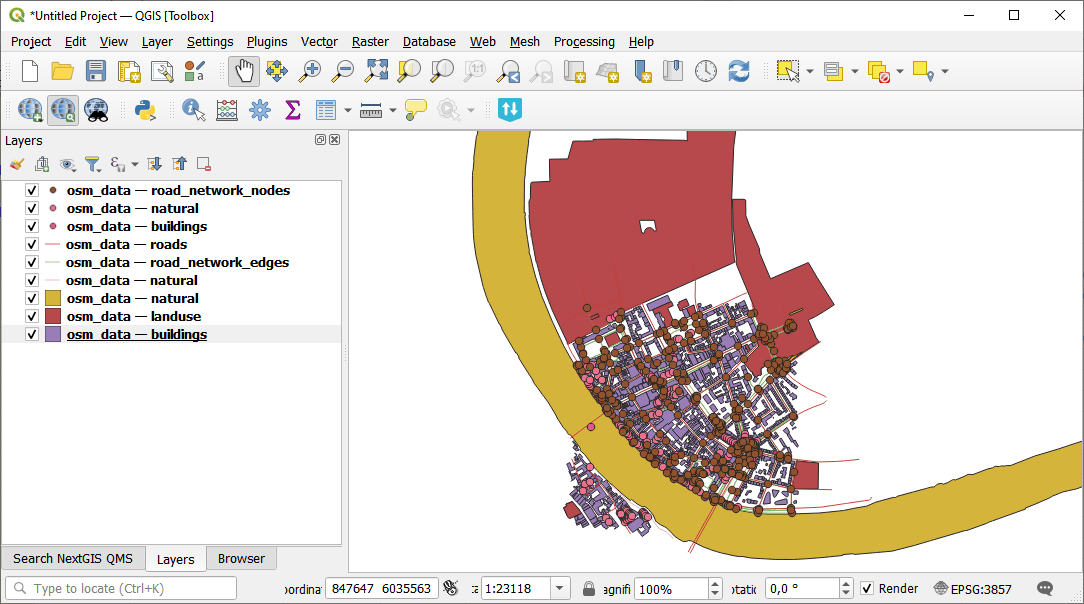

Downloaded data¶
Try the tool in action
Click on the Demo button above the tool form. The fields are filled in with demo values.
Click on the Run button.
