Set of squares with transects

This tool creates a set of square grids (polygons) and a transect for the territory.

Inputs:

• Coordinates of the first point (center of the first cell), in decimal degrees, example 40.415378, -3.688743;

• Coordinates of the second point that indicates direction, in decimal degrees, example 40.417436, -3.683170;

• Side - on which side to generate the grid: right or left;

• Cell count 1 - Number of cells on the first axis;

• Cell count 2 - Number of cells on the second axis;

• Cell size - The size of a cell’s side, in meters.

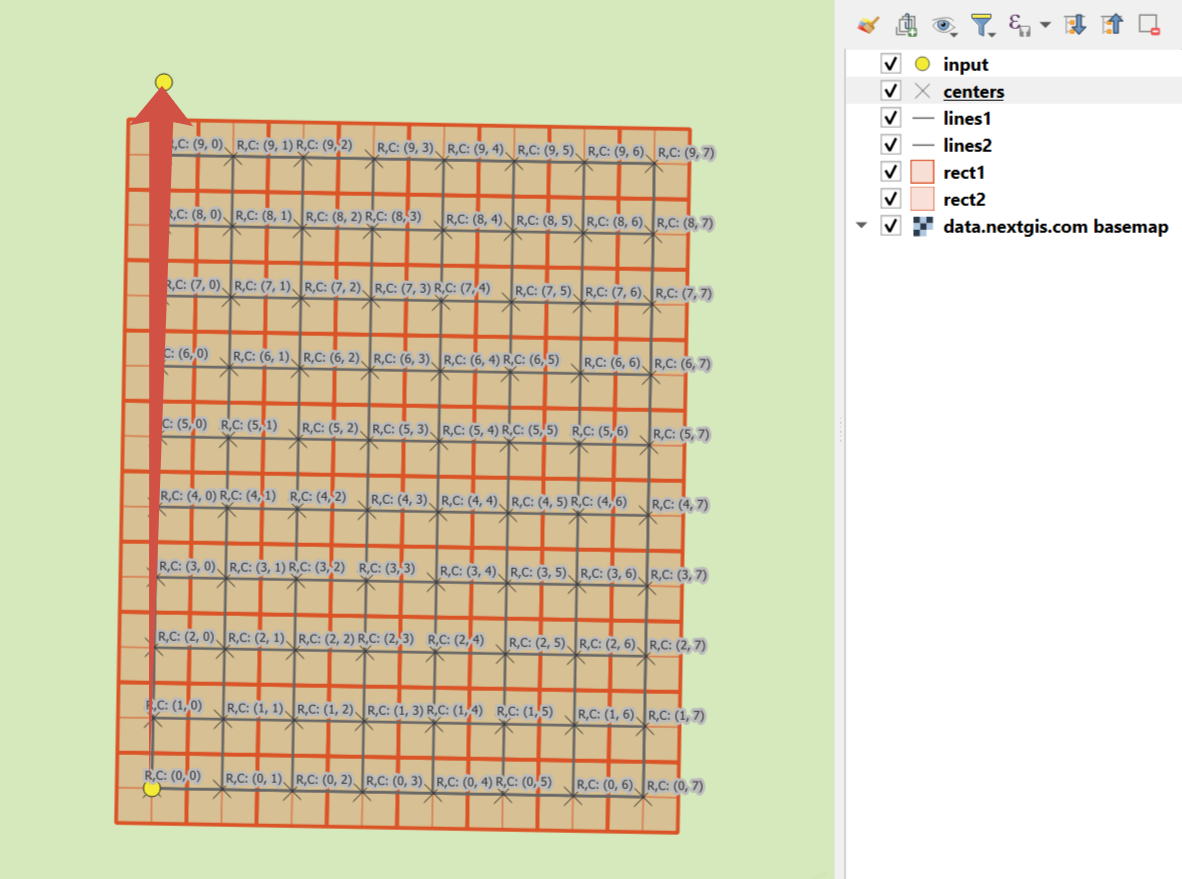

The result of the process is a set of layers:

• rect1 - a grid of cells “Size 1” by “Size 2”, the center of the first cell is at the point 1;

• rect2 - a grid of smaller cells (i.e. each large cell is divided into 4 parts);

• line1 - transect lines in the direction perpendicular to the line between points 1 and 2;

• line2 - transect lines in the direction parallel to the line between points 1 and 2;

• centers - cell centers of rect1 grid.

Styles for all the layers are also included as QML files.

View the results on an interactive map: https://demo.nextgis.com/resource/4582/display?panel=layers

Try the tool in action

1. Click on the Demo button above the tool form. The fields are filled in with demo values.

2. Click on the Run button.
