Merge connected lines
The code below uses the Toolbox SDK, which you can install with pip install toolbox-sdk.
Additional Python examples: using SDK, using Requests. If you prefer other programming language or need full API reference, check out Toolbox OpenAPI as well.
Docs
Generate linear vector file with merged highways, rivers or simlar features.
Inputs:
Source layer - linear layer in any OGC format;
Group by attribute - if a field name is entered, the layer will split by separate subsets by this attribute. For example, for highways layer set attribute ‘highway’ to avoid merging roads of different categories (i.e. primary, secondary etc).
Outputs:
GeoPackage with merged features;
Report on the number of created features.
Example:

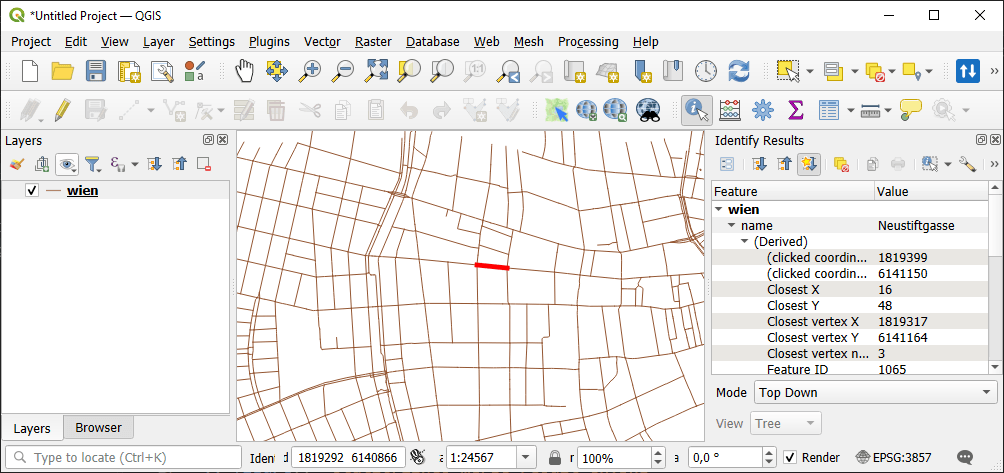

Example input: a street split in small segments¶

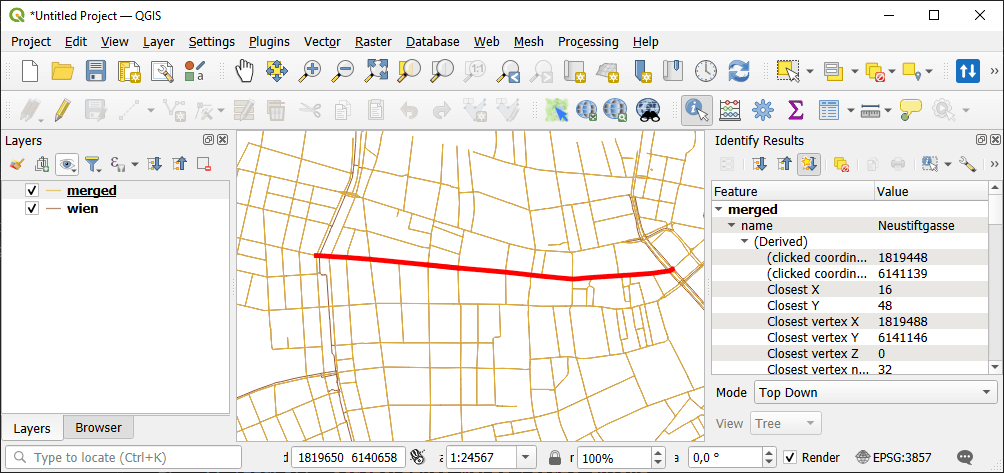

Example output: merged street¶
Try the tool in action
Click on the Demo button above the tool form. The fields are filled in with demo values.
Click on the Run button.
