Count TMS tiles for polygon

Vector
Calculate count of TMS tiles for given a vector polygon. Tiles are calculated exactly within boundary.
Demo
Sign in to upload file
File with polygons or multipolygons. Only first feature of layer is used.
Optional. Max zoom until with tiles are calculated. Default is 19.
Tile layer will be created.

Docs

Calculates the number of TMS tiles for a given vector polygon.

Inputs:

  • Boundary polygon vector file in OGR format or ZIP-archive with single layer. Geometry: polygon or multipolygon. Only the frist feature of the layer is used.

Outputs:

  • Text output listing the number of tiles for each zoom layer and the total tile count.

Example:

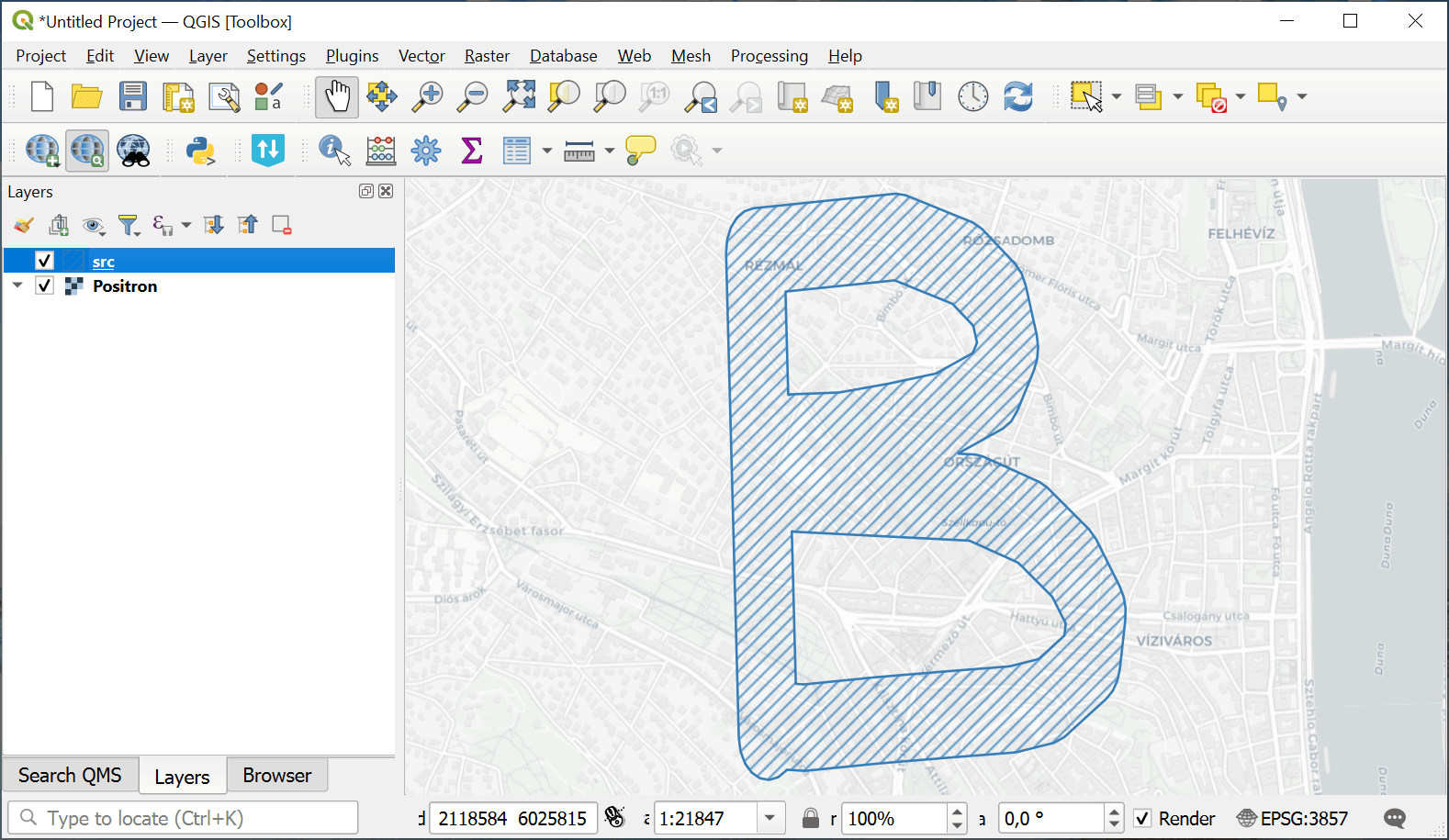

_images/count_tiles_input_en.png

Example input

Example output:

0: 1
1: 1
2: 1
3: 1
4: 1
5: 1
6: 1
7: 1
8: 1
9: 2
10: 2
11: 2
12: 2
13: 3
14: 3
15: 5
16: 14
17: 47
18: 148
19: 491
Total: 728

Try the tool in action:

Try the tool in action

  1. Click on the Demo button above the tool form. The fields are filled in with demo values.

  2. Click on the Run button.
