List of layers from DWG file
Get a CSV file with a list of layers and their geometry type from a DWG file.
The code below uses the Toolbox SDK, which you can install with pip install toolbox-sdk.
Additional Python examples: using SDK, using Requests. If you prefer other programming language or need full API reference, check out Toolbox OpenAPI as well.
Docs
This tool generates a CSV containing the list of layers from a DWG file with information on geometry and feature count.
Inputs:
Source file in AutoCAD DWG formats
Outputs:
CSV with layer list
Example:

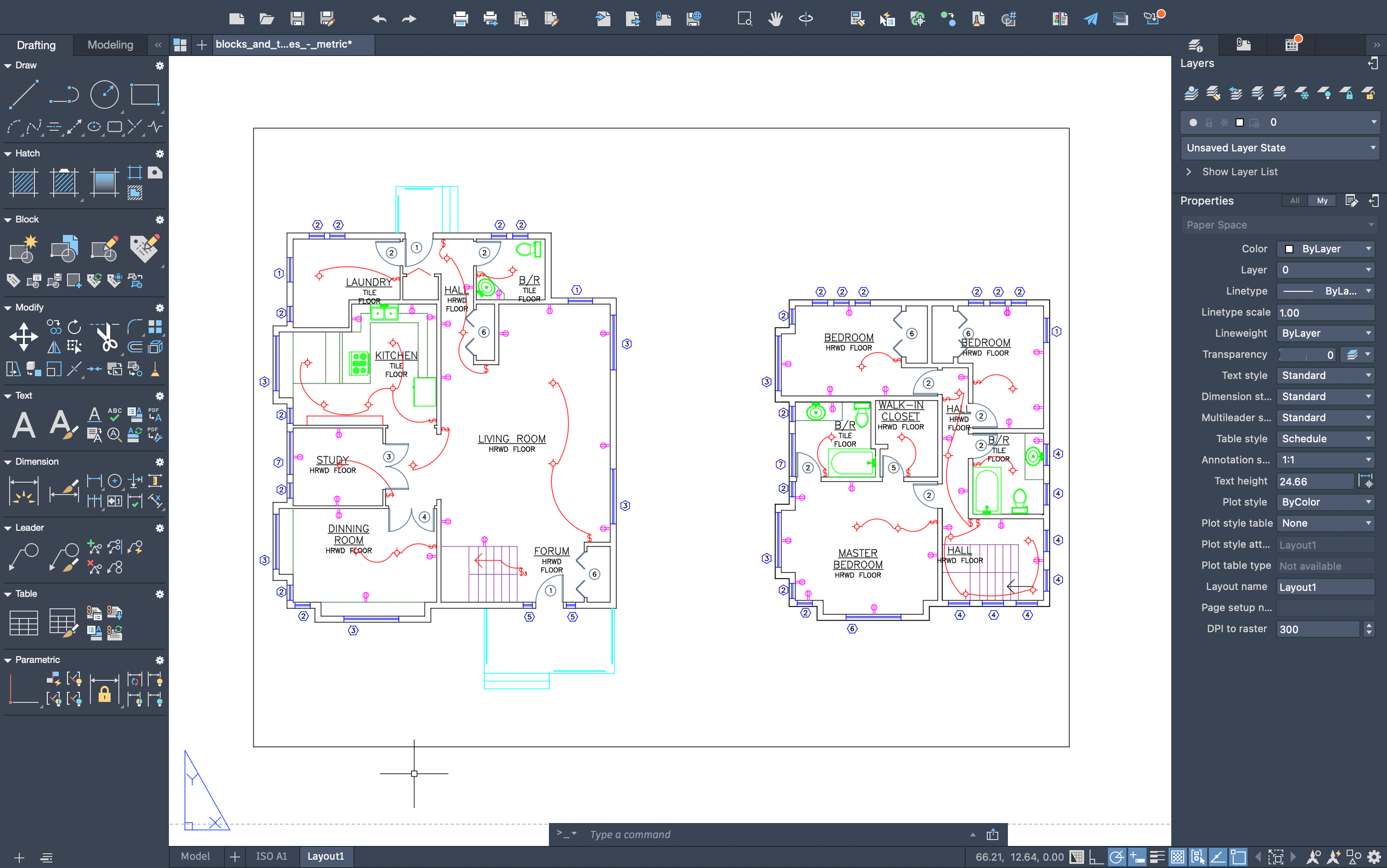

Example input¶

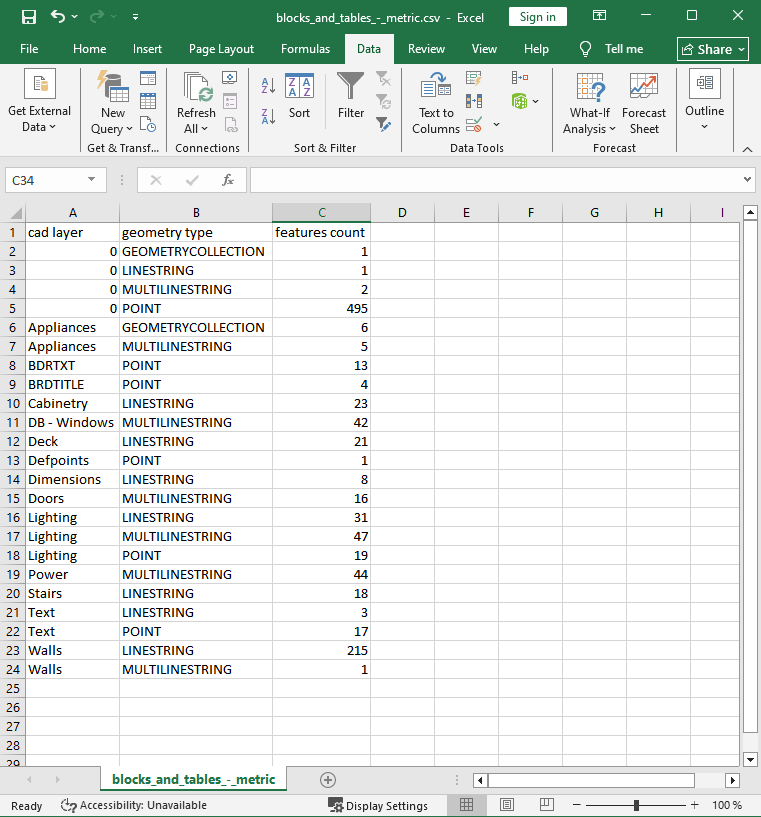

Example output: list of layers¶
Try the tool in action
Click on the Demo button above the tool form. The fields are filled in with demo values.
Click on the Run button.
